if-then

Assertions of truth can usually be phrased in the form “if … then …”. Such assertions can be re-stated in many other equivalent ways. Doing so helps you to better understand these fundamental truths or to easily expose falsehoods.

Below are two infographics summarizing the main ways to re-phrase if-then statements. Click here for a PDF document that gives details (especially explaining what is meant by the word “implies”). The PDF also offers additional examples and in-class exercises.

This example is trivial to help make it clear that truth of one implies truth of all others (and untruth of one would also imply untruth of all others). But these sorts of rephrasings can give you unexpected insights when applied to nontrivial if-them statements. Try it on a few of the examples in the full PDF document!

Truss myths and analysis

This structure would be a stable truss even though it’s not made entirely of triangles.

I’ve shared my undergrad lecture slides on “myths in truss analysis” so often that I’m making my life easier by now sharing them more broadly: http://csm.mech.utah.edu/TrussMythsAndTrussExamples.pptx. Please let me know if you see errors!



Material Property Terminology Tutorial

If you do a web search on the difference between various terms in materials engineering, you will encounter a mind-boggling array of misinformation. The following infographic summarizes basic differences between the following terms: stiffness, compliance, yield strength, rupture strength, ultimate strength, hardening, softening, ductility, rupture strain, resilience, and toughness.  Of course no real stress-strain diagram looks like any of these, but the sketches are exaggerated to help illustrate the terminology.

MaterialPropertyTerminologyShadow

Copyright statement: This infographic may be used freely as long as it isn’t altered in any way.

Keep reading for important clarifications!

Continue reading

Fourth-order tensor tutorial excerpts: Voigt and Mandel representations as well as isotropy topics

I often get asked: when are you going to finish your tensor-analysis book?

Well, I have so many pressures on my time, that this hobby gets pushed to the bottom of the stack.  This said, I find myself often discussing fourth-order tensor operations, the distinction between Voigt and Mandel components, and scalar measures of anisotropy.  To help with such discussions, I am here posting two excerpts from my unpublished tensor-analysis notes.   Enjoy this enthralling topic!

EDIT: you can now cite this topic from a real publication. It is in chapter 26 of my 2018 book: Rotation, Reflection, and Frame change.

The first excerpt from the still unpublished notes, 150606tensorsVoigtMandelExcerpt (for which the cited references may be found in 150606tensorsVoigtMandelExcerptReferences), discusses Voigt and Mandel notation, and introduces some helpful operations on fourth-order tensors.  Here are some highlights taken from this PDF excerpt (all of which are included in the rotation book if you need to cite something):

VoigtNotation

What we have labeled as the 9×1 “contravariant Voigt array (without factors of 2)” is typically called a “stress-like” array in the composites community, while the 9×1 “covariant Voigt array (with factors of 2)” is called a “strain-like” array.  When these arrays actually represent stress and strain, their last three entries are zero because of symmetry. Likewise, the 9×9 array is, in this context, the elastic stiffness so its last three columns and last three rows are zero because of minor symmetry. Accordingly, in constitutive modeling, you typically see this matrix relationship truncated down to only 6 dimensions. When using computer code to work out components of such tensors, we recommend keeping all 9 dimensions just to serve as a visual cue that you have indeed enforced symmetries properly in your equations.

It is mystifying that the composites community doesn’t seem to even realize that the Voigt representations would be more properly referred to as covariant and contravariant, so please add a comment to this post if you have ever seen any composites articles use this mathematically proper terminology. These are not just matrix equations. There is a tensor basis that goes with Voigt representations, and that basis is a set of mutually orthogonal tensors. The basis is not normalized, so that leads to co/contravariant representations, in which the factors of 2 are metrics.  Whenever you have an orthogonal but not normalized basis, the obvious thing to do is to normalize it! That is what gives the following Mandel form, which you should note has no more of that ugly distinction between contravariant (stress-like) arrays and covariant (strain-like) arrays. Both arrays are treated the same!

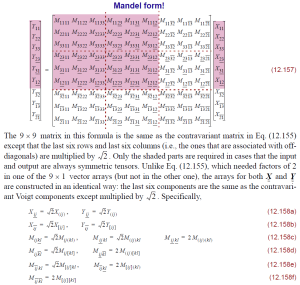

MandelNotation

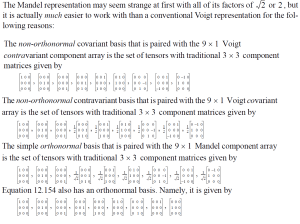

VoigtAndMandelBases

In this list, the very last set of basis tensors are the ones that pair with ordinary components of a tensor. For example, the 11 component of an ordinary second-order tensor is paired with a basis tensor whose component matrix is all zeros everywhere except a 1 in the 11 spot.  The 12 component goes with a basis tensor that has all zeros everywhere except for a 1 in the 12 spot, and so on.  The Voigt and Mandel representations merely represent a change of basis so that the first six basis tensors span the manifold of all possible symmetric tensors, while the last three basis tensors span the space of all possible skew tensors.

If you are not convinced that the Mandel representation is the better choice, try comparing it with Voigt for the components of the fourth-order identity tensor. The result is the identity matrix in Mandel form (not so for Voigt). Also, you really need the Mandel form to find eigenvalues and eigentensors.  Ordinary spectral analysis of the Voigt representation is completely meaningless — you need to use Mandel form to get meaningful eigenvalues and eigenmodes of a stiffness tensor.

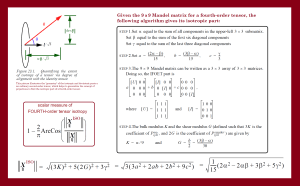

Page 658 (PDF page 30) of my second excerpt, 150606tensorsFourthOrderOperationsAndMeasureOfIsotropyExcerpt, shows how to find the isotropic (IFOET) part of a fourth-order tensor (which is NOT generally some multiple of the identity), and how to define a scalar measure of anisotropy in the range from zero to one, as determined from the “angle” that the tensor makes with the linear manifold of isotropic tensors.  Doesn’t this sound exciting?  Here is an infographic summary of this process of finding the isotropic part of a fourth-order tensor, as well as setting the scalar measure of anisotropy (equal to 1 minus the scalar measure of isotropy):

The isotropic part of a fourth-order tensor, as well as a scalar measure of anisotropy ranging from 0 to 1.

The isotropic part of a fourth-order tensor, as well as a scalar measure of anisotropy ranging from 0 to 1.

In this infographic, the acronym IFOET stands for “isotropic fourth-order engineering tensor”  (labeled “ISO” elsewhere in the image).  In the scalar measure of isotropy, the denominator is the L2 norm of the original fourth-order tensor, equal to the square root of the sum of the squares of the tensor’s Mandel components (which is another benefit of Mandel over Voigt because getting the magnitude of a Voigt tensor would require insertions of factors of 2 and 4 — Yuck!). As you can see, the isotropy is 100% if the original tensor is isotropic, and it ranges down to 0% isotropy if the isotropic part of the original tensor is zero.

Linear algebra applied to sundials

CSM alumnus, Scot Swan, offers Sundials_and_Linear_Algebra,  which is a short (informal) writeup on the equations that are used for making standard horizontal dials.   Challenge: see if Scot’s write up is consistent with the calculator at http://www.anycalculator.com/horizontalsundial.htm.

Continue reading

Tips for writing literature reviews

This posting aims to help graduate students write a good literature review for their qualifying exam, proposal, or thesis.

In the Department of Mechanical Engineering at the University of Utah, the qualifier examination is not a proposal, so there is no expectation that your Qual paper should propose new research.  Your literature review should, however, critically assess existing research in the subject area by pointing out specific limitations of (and, if applicable, errors in) existing published work.   The qualifier paper is meant to show that you can string together a coherent scholarly discussion.   The qualifier paper can have a fairly broad literature review as long as it still limits attention to mechanical engineering topics. The proposal document, on the other hand, should include a literature review that is more tightly related to your proposed research, as your aim is to convince the committee that your proposed work is (1) important to the field of Mechanical Engineering and (2) has not been done. The thesis document should include an updated literature review that suggests no one else has accomplished the same thing during the time you were working on it (or prior to your efforts, but inadvertently overlooked in your original literature review). The final thesis literature review should also thoroughly compare/contrast your own accomplishments with alternative approaches in contemporary literature.

Continue reading

Streamlines, Streaklines, Pathlines, and Gridlines

GridStreamStreakPath

The above animation aims to be a slight improvement over one on Wikipedia, which (incidentally) does not correctly describe the velocity field that it is depicting. The Wikipedia image doesn’t show a checkerboard of moving material, nor does it have a nice depiction of streamlines.

Before describing this animation, it might be helpful to look at a simpler motion (a rolling body) in order to review the difference between streamlines, streaklines, and pathlines. Consider a simple rigid body consisting of a disk of small radius (shown in gray below) along which it rolls along a tabletop, along with a larger-radius extension of the body (shown in color below) which can dip down below the table surface (as if there is a slot cut into the table so that part of the body rolls under it).

STREAMLINES: These are tangent to the instantaneous velocity field.  For a rolling rigid body, the motion is always circular about the instantaneous center of rotation at the bottom of the wheel. Accordingly, this image shows the streamlines at various points in time as the disk rolls along:

particleStreamLineRolling

This image of streamlines is drawn not just on the body itself but also on its “virtual extension” in order to emphasize that (for rigid rolling) the instantaneous velocity is circular around the instantaneous center of rotation (bottom of the wheel). A particular set of streamlines is drawn in red. These are the ones that pass through a set of points that are evenly distributed on a spoke of the wheel (shown in black).

STREAKLINES: These are the lines you would see if a magic gremlin were to sit at a given location in space and “spraypaint” the material as it passes by.  Suppose that an assembly line of gremlins (located where you see the dots in the first image) are pointing their spray paint cans at the body while it rolls past. Then they would form the black streaklines shown here at various times:

streaklinesOnBefore

Important: The streaklines are made by gremlins who are sitting still and spraying material as it passes by.

PATHLINES: Are made by gremlins who “ride” with the material, spraying a record of where they have been (as if we were watching the rolling body from behind a window, and those whacky gremlins would spray paint onto the window as they pass by). Accordingly, here are the pathlines for group of gremlins who were initially coincident with the gremlins in the above streakline plot:

particlePathLineRolling

GRIDLINES are any set of lines that are painted on the body like tattoos. Such lines move with the body (like a tattoo).



Continue reading

von Mises: cylinder, circle, or ellipse?

The answer is…all of the above!   The von Mises cylinder is centered about the {1,1,1} direction in principal stress space.  The ellipse that we learn about as undergrads applies only to plane stress (where the third principal stress is zero), and this is just the intersection of the cylinder with the plane.  The circle applies to the octahedral plane, which is the view of the cylinder down its {1,1,1} axis.  This animation should clarify what is going on:

MisesCylinderAndMisesEllipse
